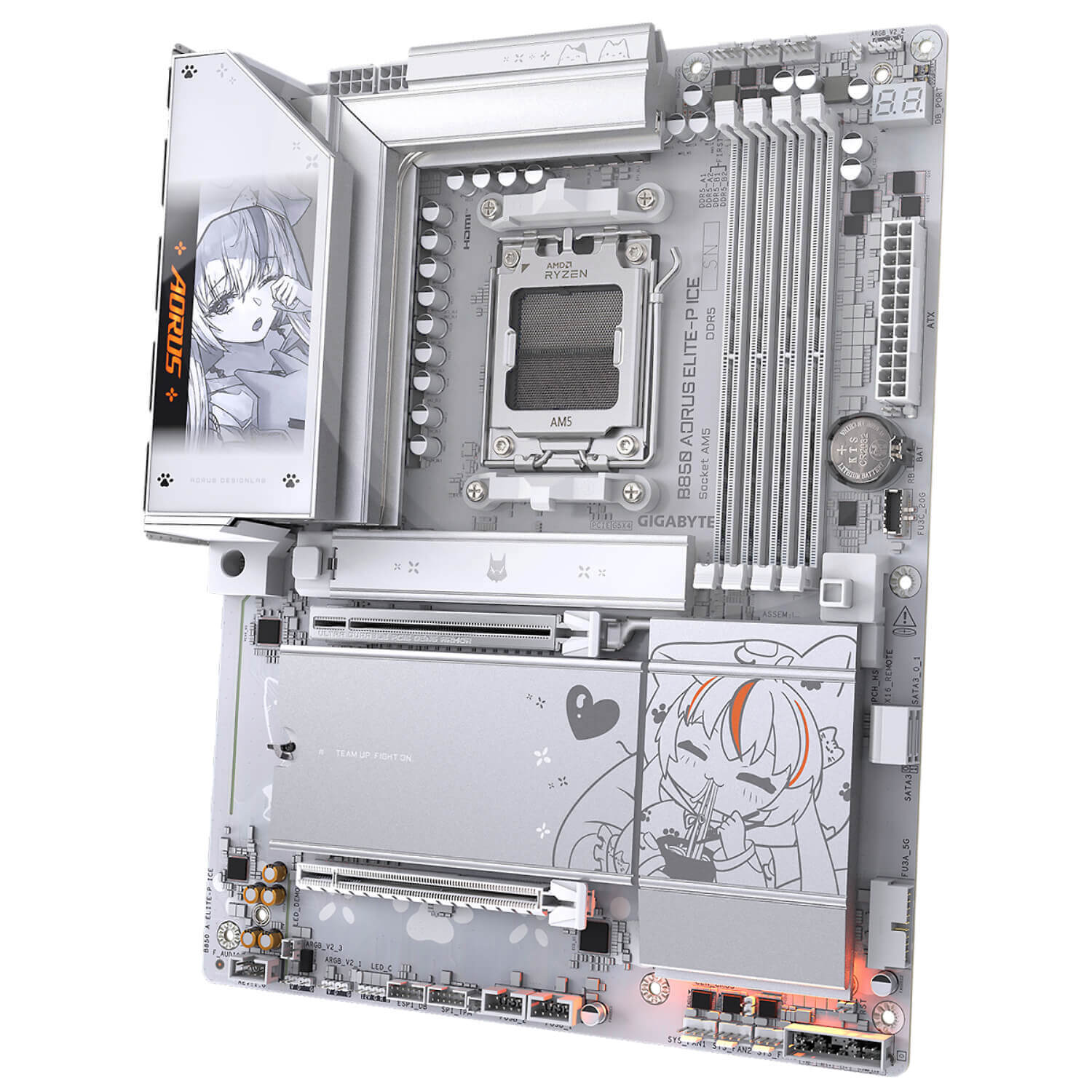

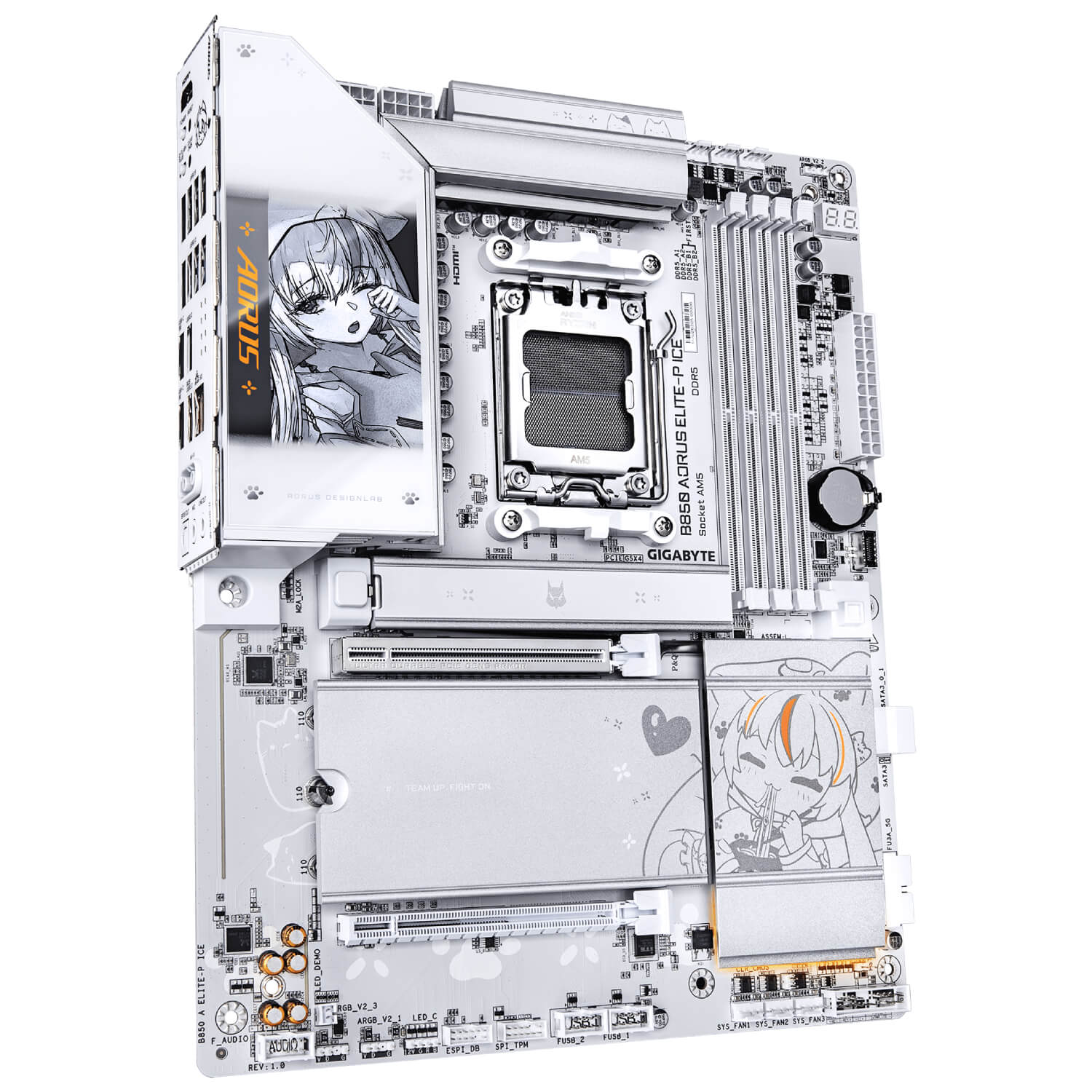

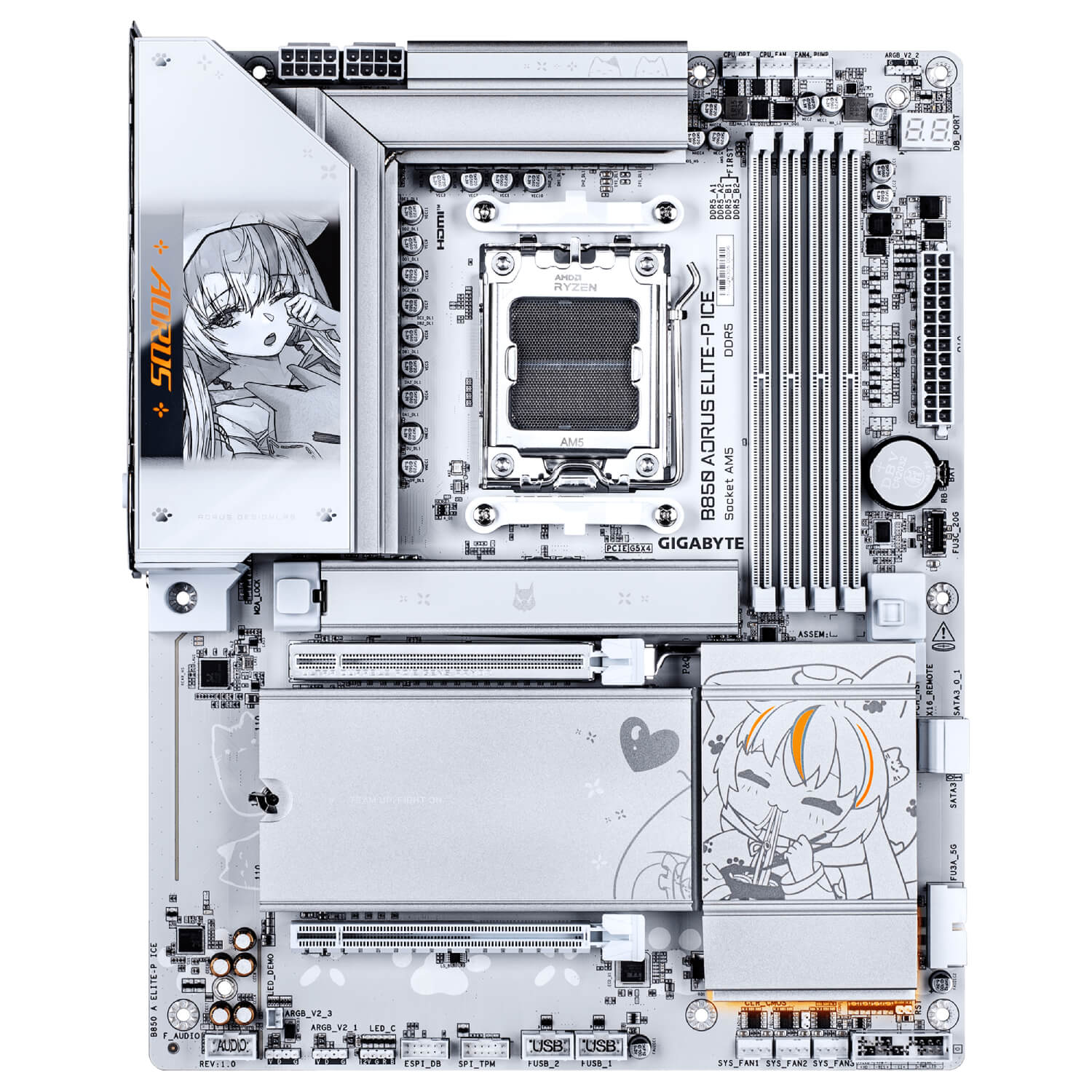

The Gigabyte B850 AORUS ELITE-P ICE is an ATX motherboard for AMD Ryzen gaming and content-creation builds, based on the AMD B850 chipset with the AM5 socket and DDR5 memory support.
Four DDR5 DIMM slots support dual-channel memory and AMD EXPO profiles, while the reinforced primary slot supports PCIe 5.0 x16 for a graphics card. Storage is handled by four M.2 slots (one PCIe 5.0, three PCIe 4.0) plus two SATA 6Gbps ports, and a digital 16+2+2 power design with extended heatsinks and M.2 thermal guards keeps demanding CPU configurations stable.

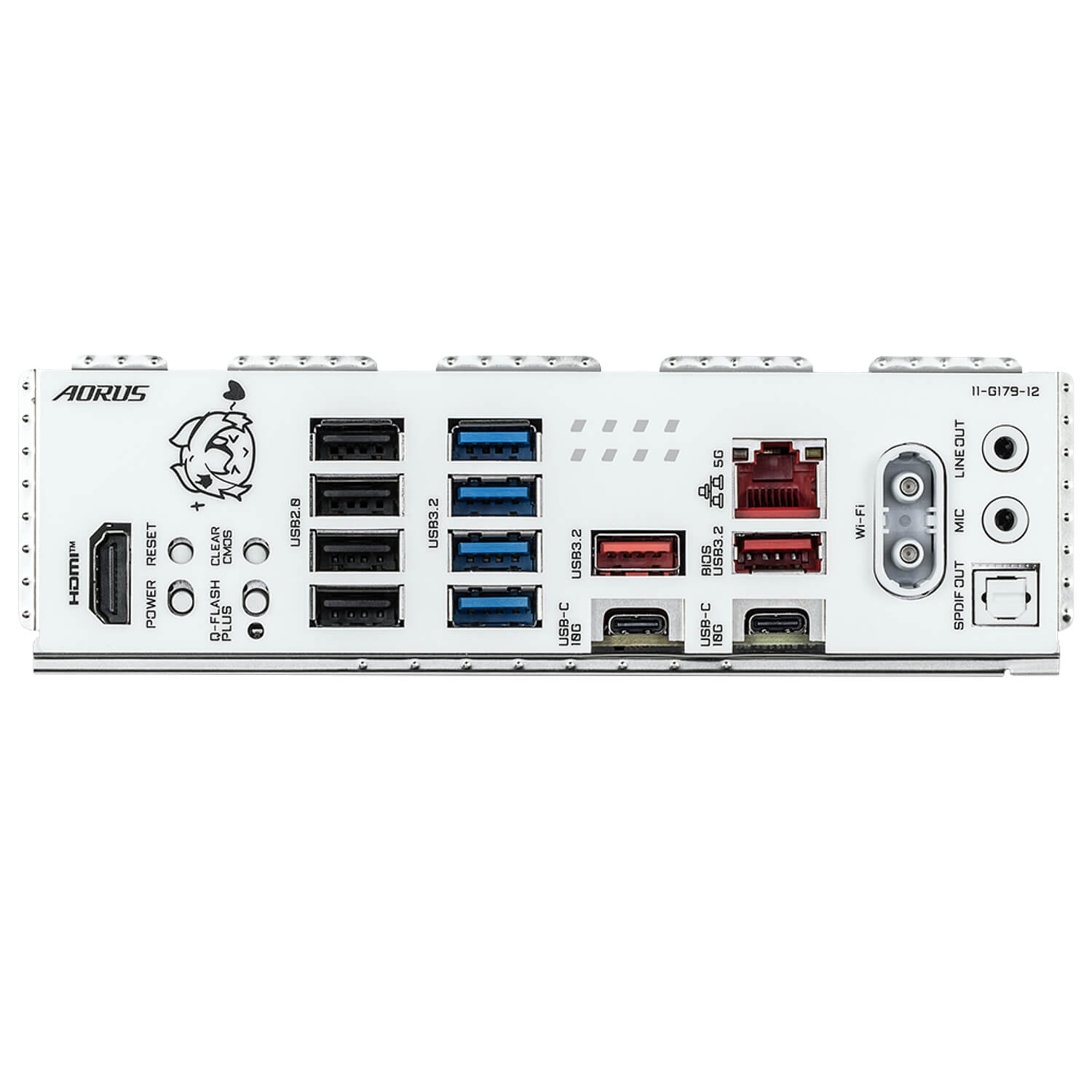

Wi-Fi 7 and 5GbE LAN provide fast wired and wireless networking, and the rear panel includes USB Type-C and USB 3.2 Gen 2 Type-A ports alongside an internal USB 3.2 Gen 2x2 header for compatible cases.
מפרט
- שקע: AM5
- ערכת שבבים: AMD B850
- פורם פקטור: ATX
- סוג זיכרון: DDR5 (4 DIMM slots)
- קישוריות: LAN 5Gb/s, Wi-Fi 7, Bluetooth 5.4
- יציאות: USB 2.0, USB 3.2, USB Type-C
- אחסון: SATA3 (2), M.2 PCIe (4 slots)
- Interface: PCIe 4.0 x16, PCIe 5.0 x16
- גרפיקה: HDMI output (with compatible CPU)
