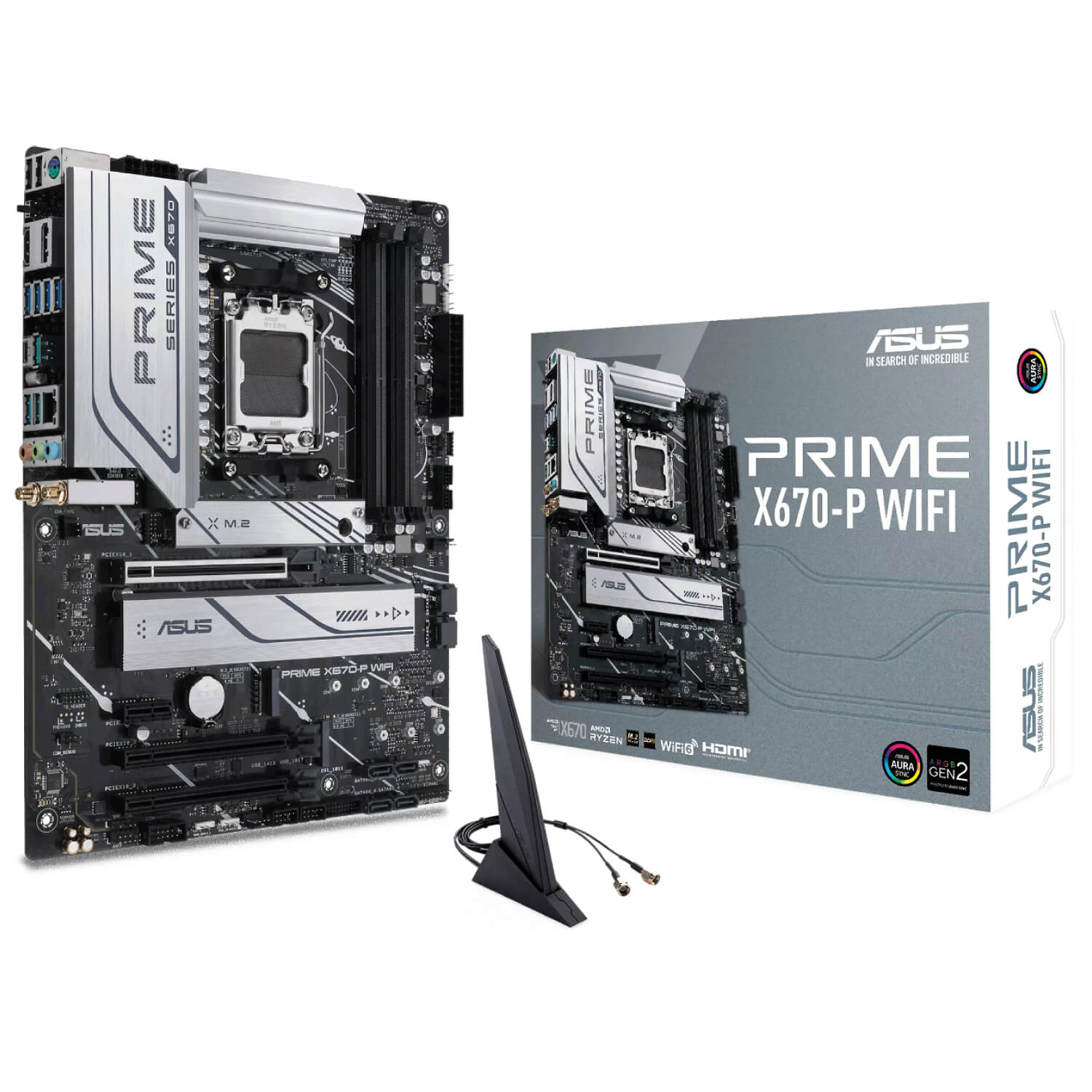

The ASUS PRIME X670-P WiFi is an ATX motherboard with AM5 socket, designed for AMD Ryzen 7000, 8000, and 9000 series desktop processors. It supports DDR5 memory in dual-channel configuration with four DIMM slots, AMD EXPO profiles, and ASUS OptiMem II technology. The board features a 12+2+1 power phase design with enlarged VRM heatsinks and M.2 heatsink for thermal management.

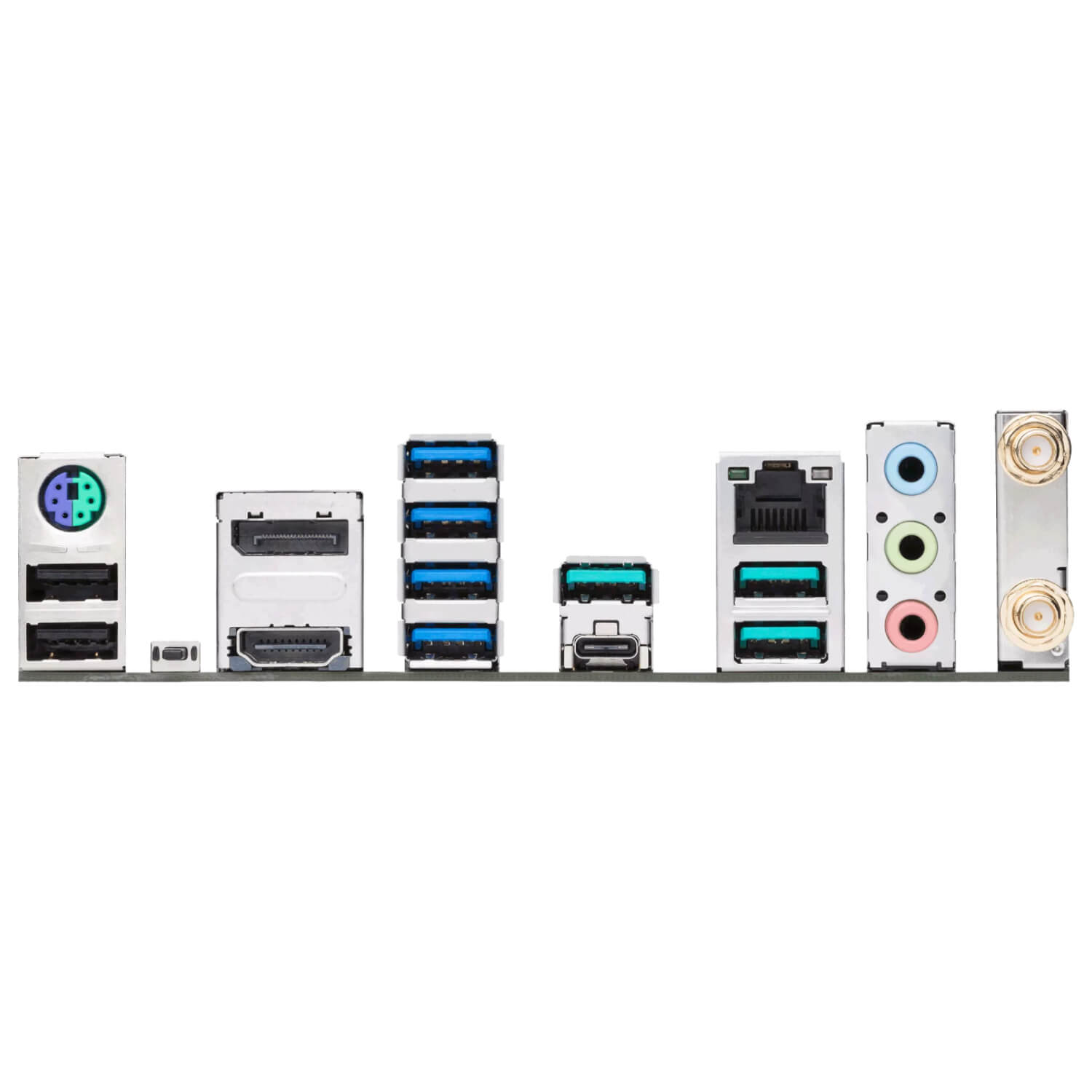

Expansion includes a primary PCIe 4.0 x16 slot for graphics cards, two additional PCIe 4.0 x16 (x8 mode) slots, and one PCIe 3.0 x1 slot. Storage options include three M.2 slots (with PCIe 5.0 x4 support on the primary slot with compatible CPUs) and six SATA 6Gbps ports. Connectivity features WiFi 6 (2.4GHz/5GHz), Bluetooth 5.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI, and DisplayPort outputs for integrated graphics. BIOS FlashBack allows BIOS updates via rear panel button and USB drive.
Specifications
- Socket: AM5
- Chipset: AMD X670
- Form Factor: ATX
- Memory Type: DDR5
- Memory Slots: 4 × DIMM (Dual Channel)
- PCIe x16: 1 × PCIe 4.0, 2 × PCIe 4.0 (x8 mode)
- PCIe x1: 1 × PCIe 3.0
- M.2 Slots: 3 (1 × PCIe 5.0 x4, others PCIe 4.0/3.0)
- SATA: 6 × SATA 6Gbps
- Wireless: WiFi 6 (2.4/5GHz), Bluetooth 5.2
- Ethernet: Realtek 2.5Gb
- USB: USB 3.2 Gen 2x2 Type-C (20Gbps), USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0
- Video Outputs: HDMI, DisplayPort
- Warranty: 3 years
