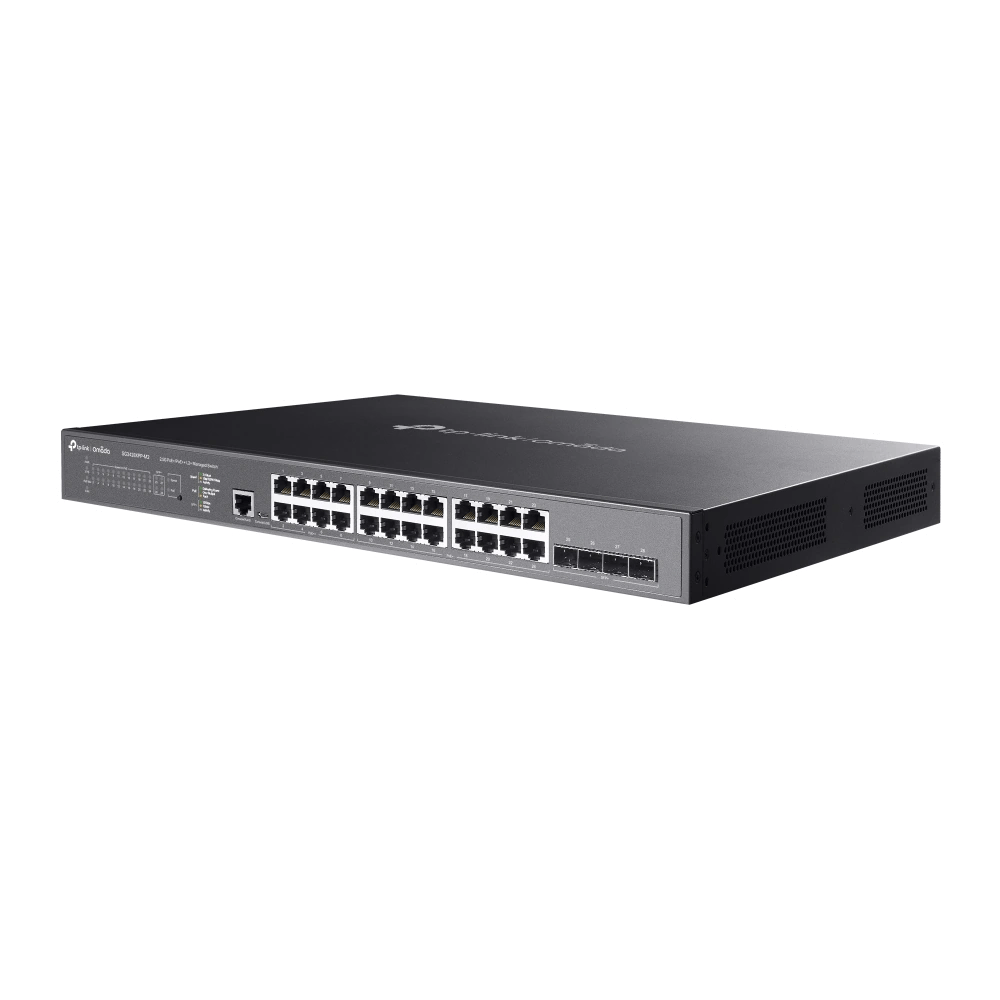

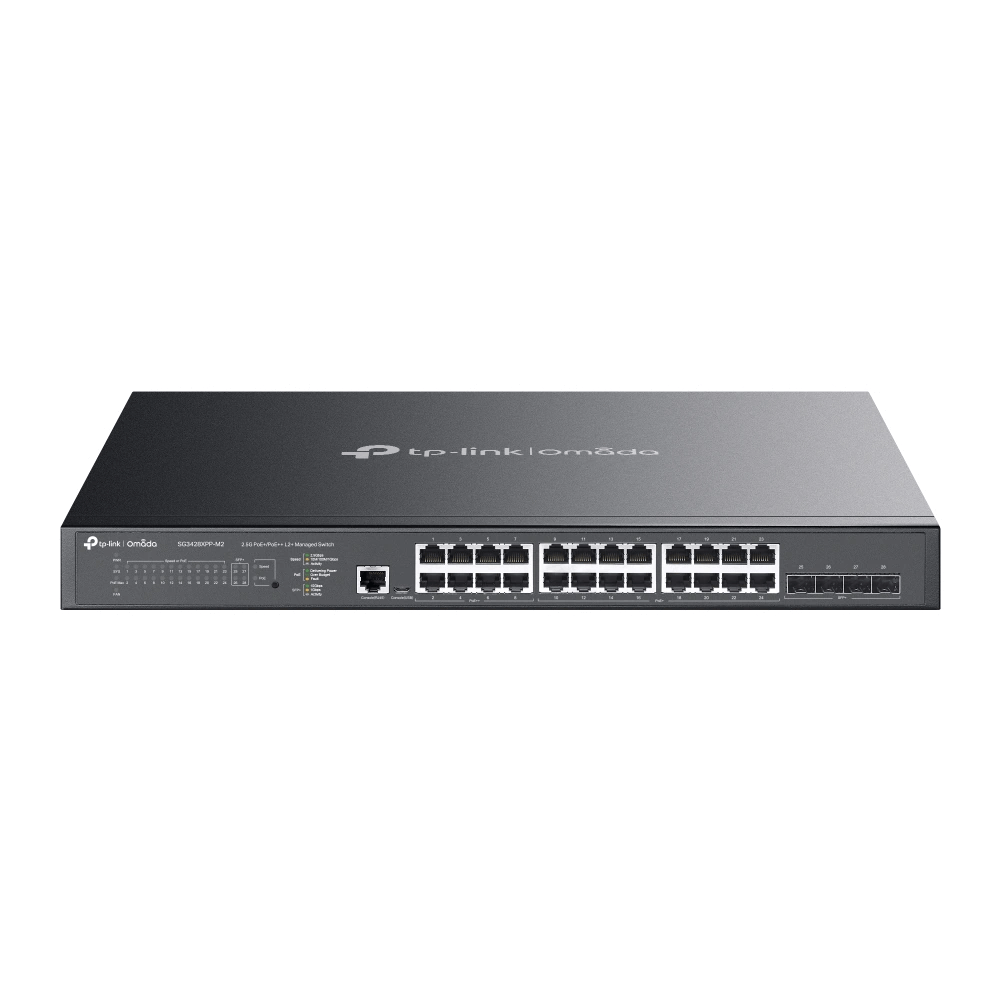

The Omada SG3428XPP-M2 is an L2+ managed switch built for demanding networks, combining 24 2.5GBASE-T ports — 2.5 times the speed of standard Gigabit — with high-power PoE and four 10G SFP+ uplinks for high-bandwidth connections back to the core network.
Eight of the ports support PoE++ (802.3bt) at up to 60W each, and sixteen support PoE+ (802.3at) at up to 30W each, with a combined power budget of 500W — enough for Wi-Fi 6/7 access points, PTZ security cameras and other power-hungry devices. The switch is managed free through the Omada SDN cloud platform and supports static routing, VLANs, QoS, ERPS ring protection and a range of security features.
Specifications
- Ports: 24x 2.5GBASE-T, 4x 10G SFP+
- Wattage: 500W total PoE budget
- Connectivity: 8x PoE++ (60W), 16x PoE+ (30W)
- Compatibility: Omada SDN cloud management
