Product details

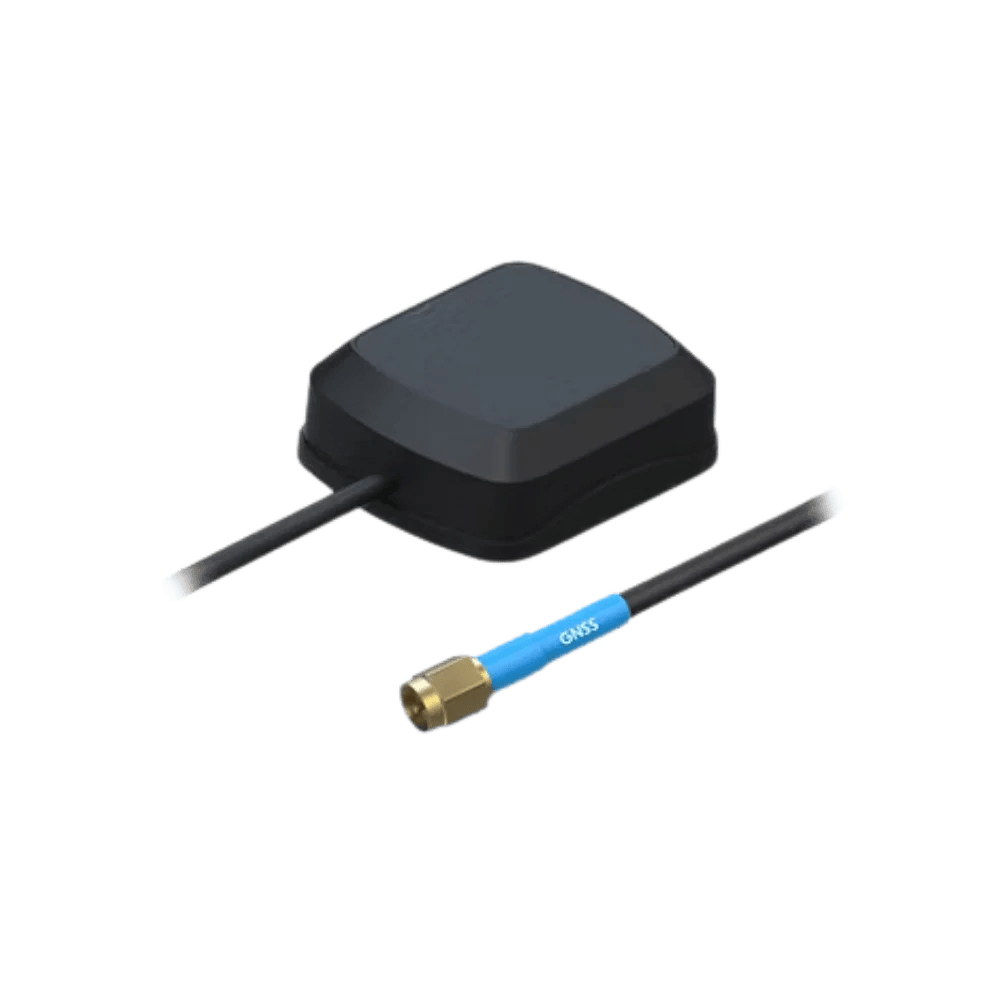

The Teltonika PR1KSG30 is an external GNSS antenna built to deliver stable, accurate satellite positioning for navigation, telematics, IoT, and vehicle-tracking systems. It operates in the 1575–1602 MHz frequency range and uses RHCP polarisation for reliable reception across varied installation environments.
A built-in low-noise amplifier with 26dB of gain boosts signal quality even in challenging reception conditions. The antenna connects via a 3-metre RG174 cable terminated with a male SMA connector, and mounts easily using an adhesive base — suited to a wide range of tracking and navigation equipment.
Its rugged construction is rated for operation from -40°C to +85°C, making it suitable for professional use in demanding outdoor and vehicle-mounted environments.
Specifications
- Frequency: 1575–1602 MHz (GNSS)
- Connectivity: SMA male connector
- Cable Length: 3 m (RG174)
- Compatibility: GPS/GNSS tracking and navigation systems
Specifications
Connectivity
| Connectivity | SMA (male) |
|---|
General
| Brand | Teltonika |
|---|
Other details
| Frequency | 1575-1602 MHz |
|---|---|
| Cable Length | 3 m |
